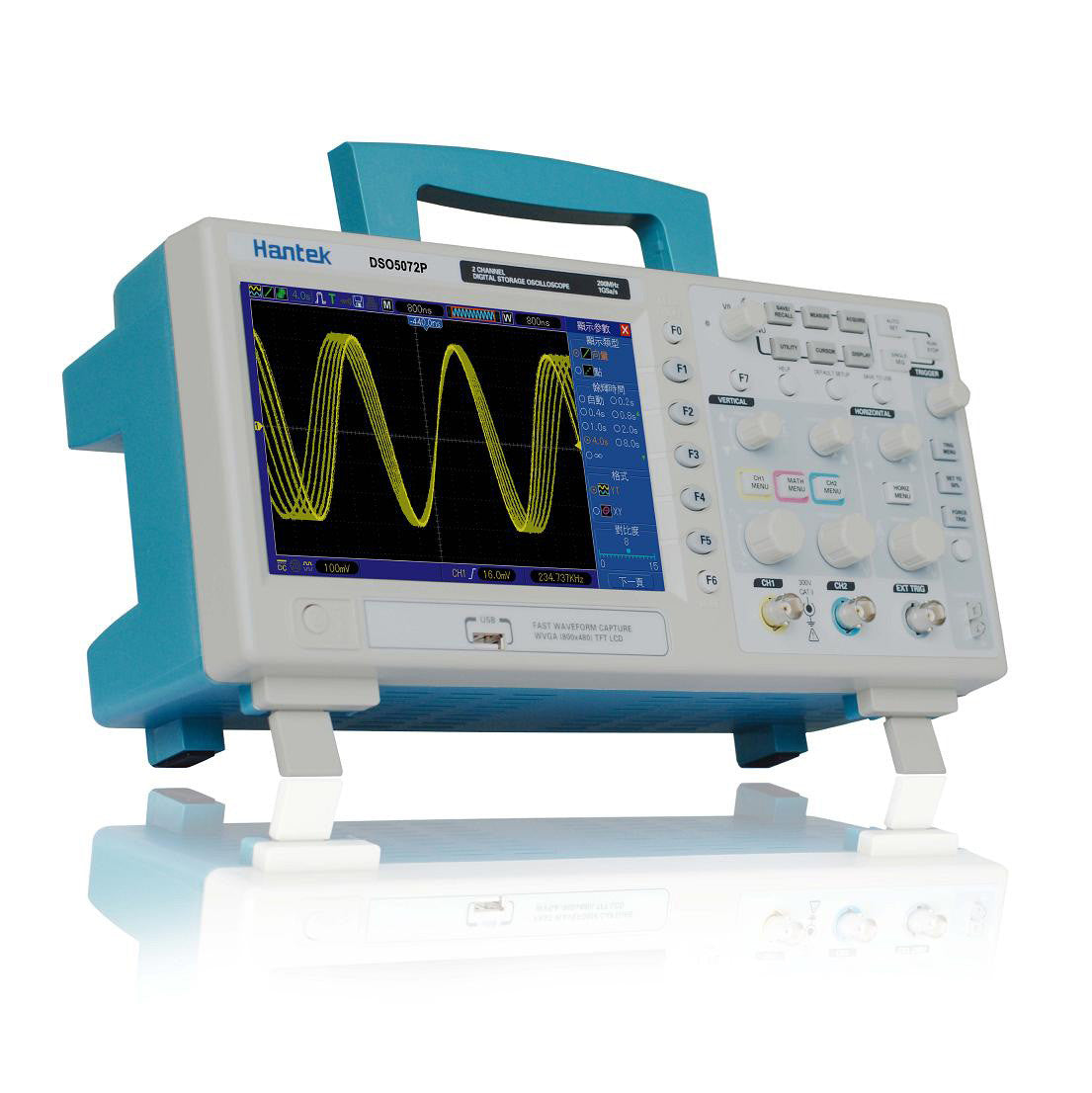

Leading-edge [Discontinued] Hantek DSO5072P Digital Oscilloscope 70MHz 1Gs 2CH 7" TFT WVGA(800x480)

Model

DSO5202P

DSO5102P

DSO5072P

Bandwidth

200MHz

100MHz

70MHz

Real-time Sample Rate

1GSa/s

Equivalent Sample Rate

25GSa/s

Record Length

24K

SEC/DIV Range

4nS/div-40S/div (in a 2, 4, 8 sequence)

Delay Time Accuracy

500ps

Vertical

A/D Converter

8-bit resolution, each channel sampled simultaneously

VOLTS/DIV Range

2mV/div~5V/div at input BNC

Position Range

±50V(5V/div),±40V(2V/div~500mV/div),
±2V(200mV/div~50mV/div)±400mV(20mV/div~2mV/div)

Rise Time at BNC

�.7ns

�.5ns

�ns

DC Gain Accuracy

±4% for Sample or Average acquisition mode, 5mV/div to 2mV/div
±3% for Sample or Average acquisition mode, 5V/div to 10mV/div

Trigger System

Trigger Sensitivity
(Edge Trigger Type)

DC:  1div from DC to 10MHz;1.5div from 10MHz to 100MHz; 2div from 100MHz to 200MHz;
EXT: 200mV from DC to 40MHz
EXT/5:1V from DC to 40MHz
AC: Attenuates signals below 10Hz
HF Reject: Attenuates signals above 80kHz
LF Reject: Attenuates signals below 150kHz
Noise Reject: Reduces trigger sensitivity

Trigger Level Range

CH1,CH2: ±8 divisions from center of screen
EXT: ±1.2V EXT/5: ±6V

Trigger Level Accuracy,
typical (Accuracy is for signals having rise and fall times �0ns)

CH1,CH2: ±(0.3div×V/div) (within ±4 divisions from center of screen)

EXT: ±(6% of setting + 40mV)
EXT/5: ±(6% of setting + 200mV)

Holdoff Range

100ns-10s

Trigger Type

Edge

Trigger on the rising or falling edge

Pulse Width

Trigger (when >,<,=,� on positive or negative pulses
Pulse Width Range: 20ns-10s

Video

Trigger on an NTSC, PAL, or SECAM standard video signal
Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM)

Slope

Trigger (when >,<,=,� on a positive or negative slope
Set Time: 20ns�0s

Overtime

from the rising or falling edge
Set Time: 20-10s

Alternate

Internal trigger on edge, pulse width, video or slope

Measurement

Cursors

Manual: The difference between voltage cursors ?V; the difference between time cursors ?T; 1/?T calculated by Hz.
Tracing: The voltage and time at a waveform point;

Automatic(32)

Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH?FRF?FFR?LRR?LRF?LFR?LFF

Display

Type

Right angle 7"TFT 16-digit color LCD

Resolution

800*480 dots

Contrast

16 gears, with the progress bar to show adjustment

Interface

USB host and USB slave

Power Supply

Voltage

100-120VACRMS(±10%),45Hz to 440Hz,CAT?
120-240VACRMS(±10%),45Hz to 66Hz,CAT?

Power

<30W

Fuse

2A, T rating, 250V

Mechanical

Size

Length: 313mm Width: 108mm Height: 142mm

Weight

2.08KG (exclusive of packing and accessories
